62 FL Chop Rebuild 14
Still messin' with the magneto setup....

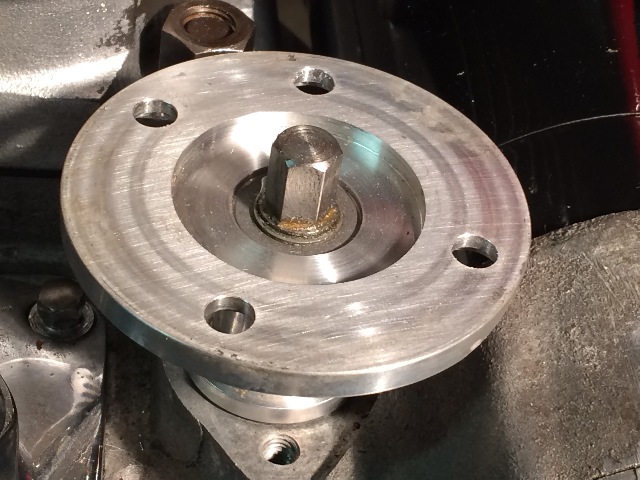

Beveled the edge of the base for clearance with the motor case...

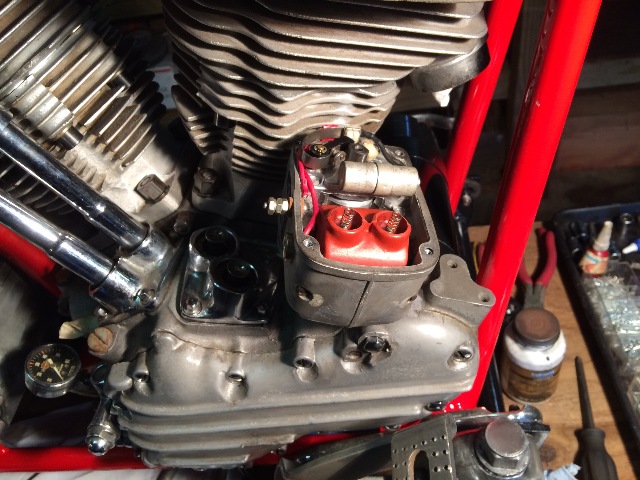

There are six positions I can locate the magneto head onto the shaft....
And a whole bunch of teeth to keep trying different locations on....
With the front piston at the ignition location, and trying different combos of teeth and hex matching,

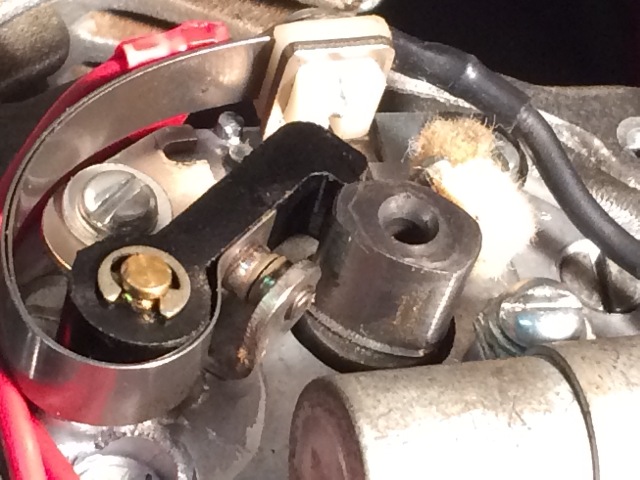

I finally got the breaker points to just begin to open on the small lobe....
I think I finally got a setup that will work....

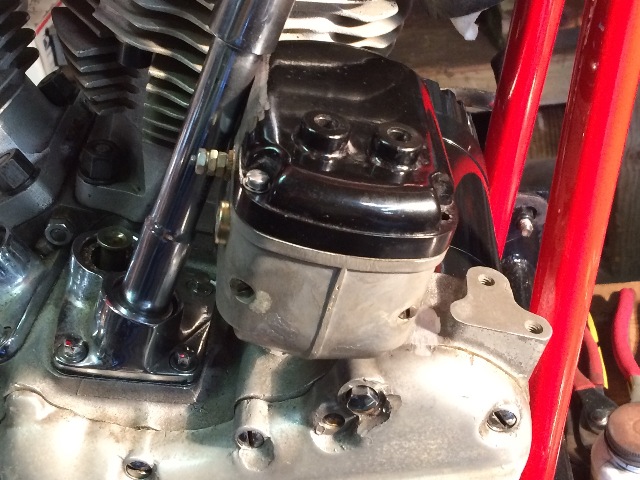

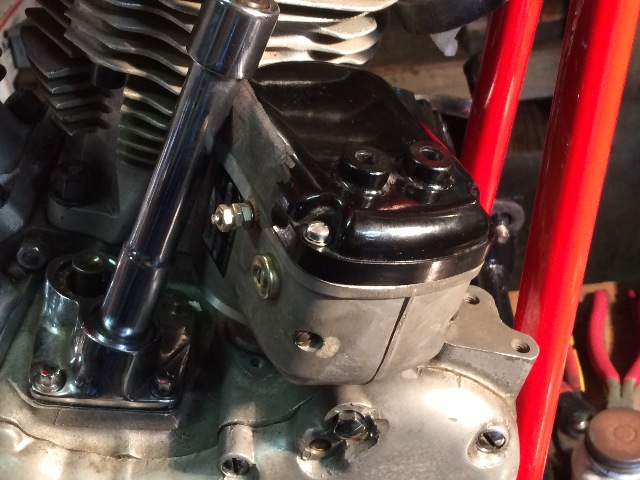

It is still tight against the front pushrod tube, but as limited as this range is,
I think it will work....
More Later....
